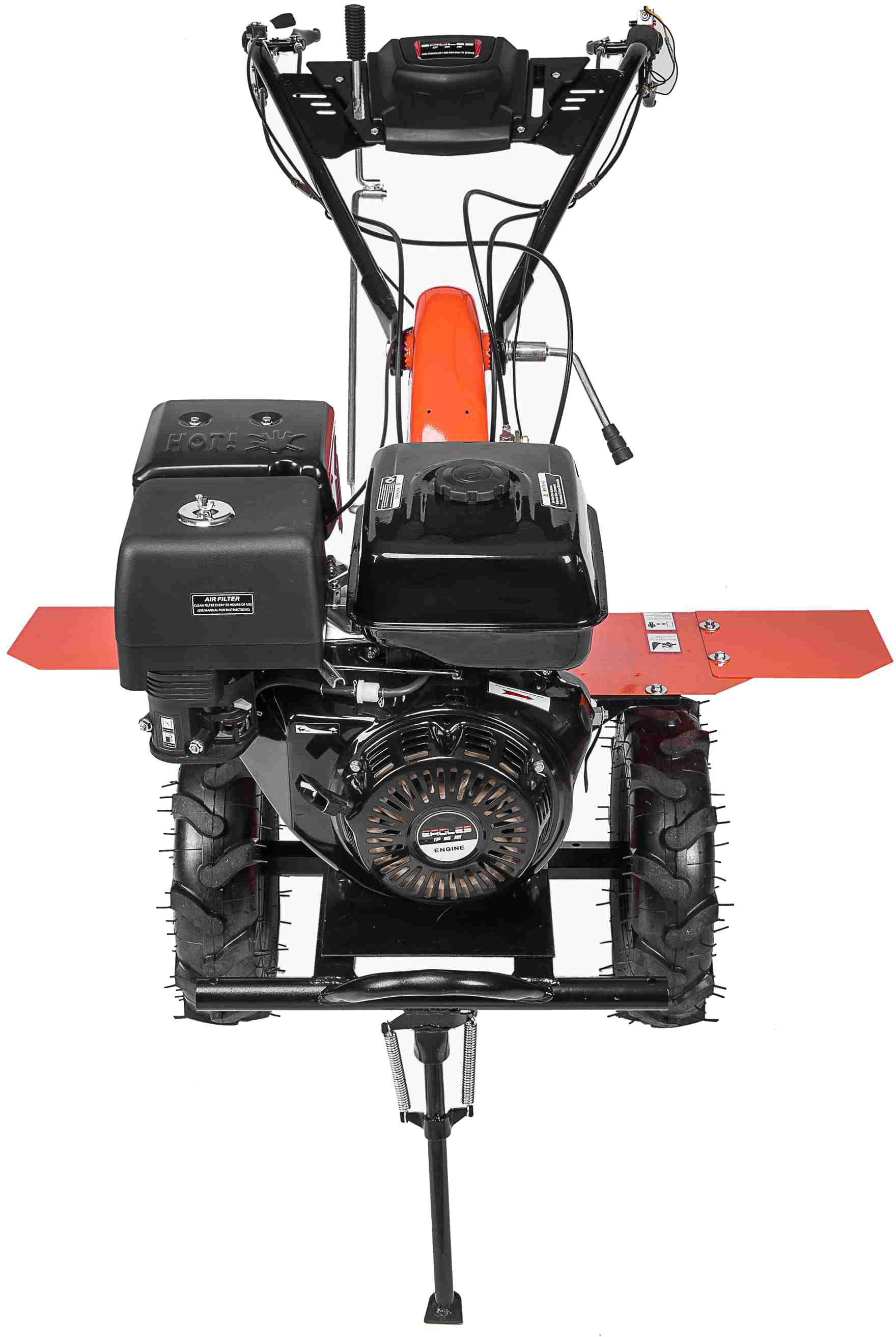

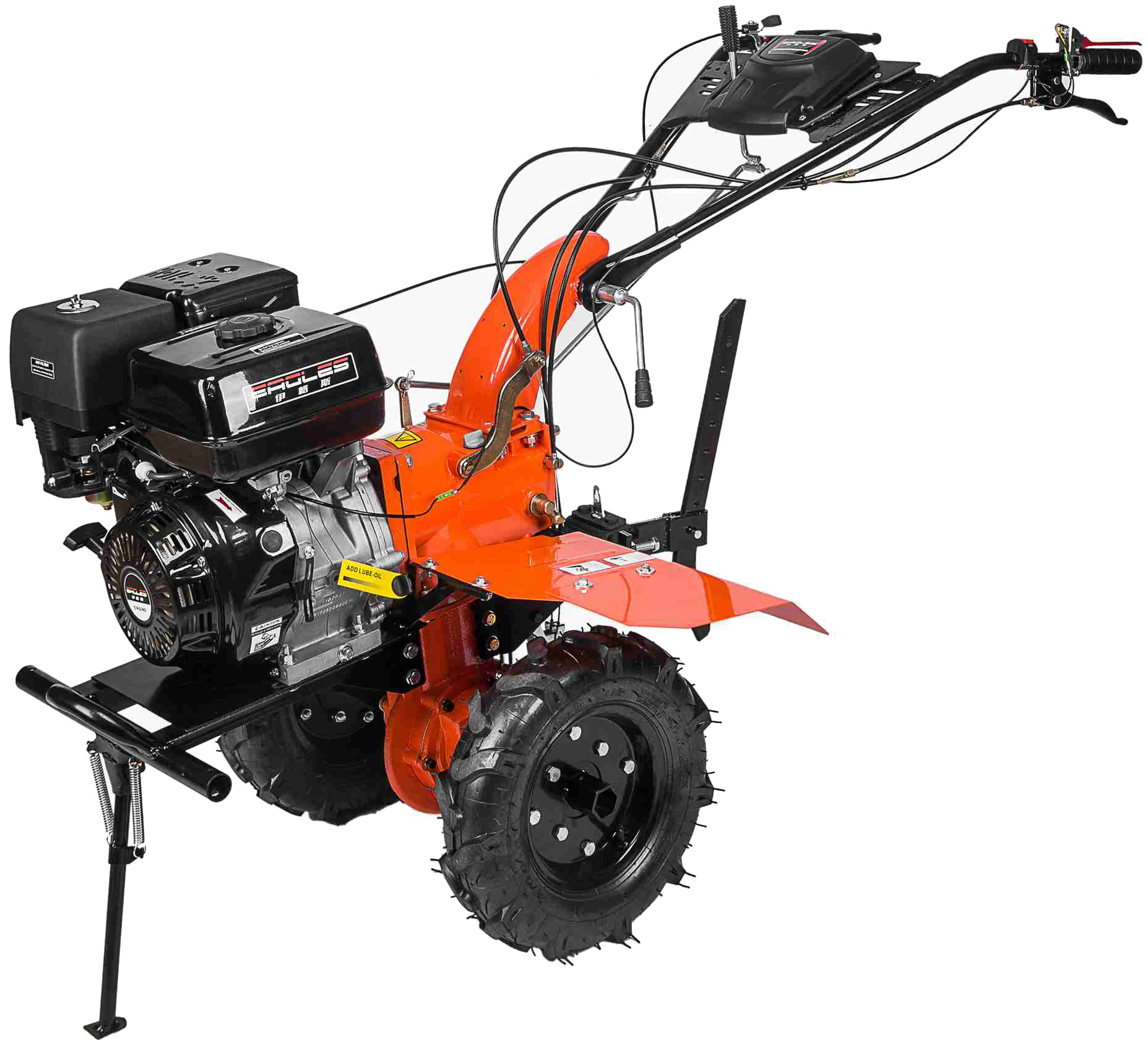

Gasoline microplowing machine
Your current location: home > PRODUCT CATEGORY > Mini Tillers > Gasoline microplowing machine >
| Name | Steering system |
| Model | 1WG4.5-105FQ-ZC-3 |

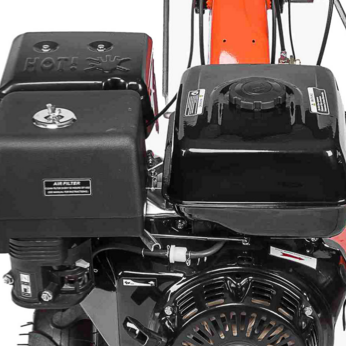

| Engine type | 177F/PGasoline engine |
| Rated RPM (r/min) | 3600 |
| Rated output(kw) | 4.5 |
| Dimention(L*W*H)(mm) | 1680*1050*800 |
| Transmissioin type | Gear |
| Clutch type | Friction plate clutch |
| （r/min） | F：146；S：93 |
| Tillage width(mm) | 1050 |
| Tillage depth (mm) | ≥100 |
| Working speed(m/s) | 0.1～0.3 |
| Workficiency(h㎡/h.m) | ≥0.04 |
| Fuel consumption(Kg/h㎡) | ≤35 |
