Diesel pump
Your current location: home > PRODUCT CATEGORY > Water Pumps > Diesel pump >

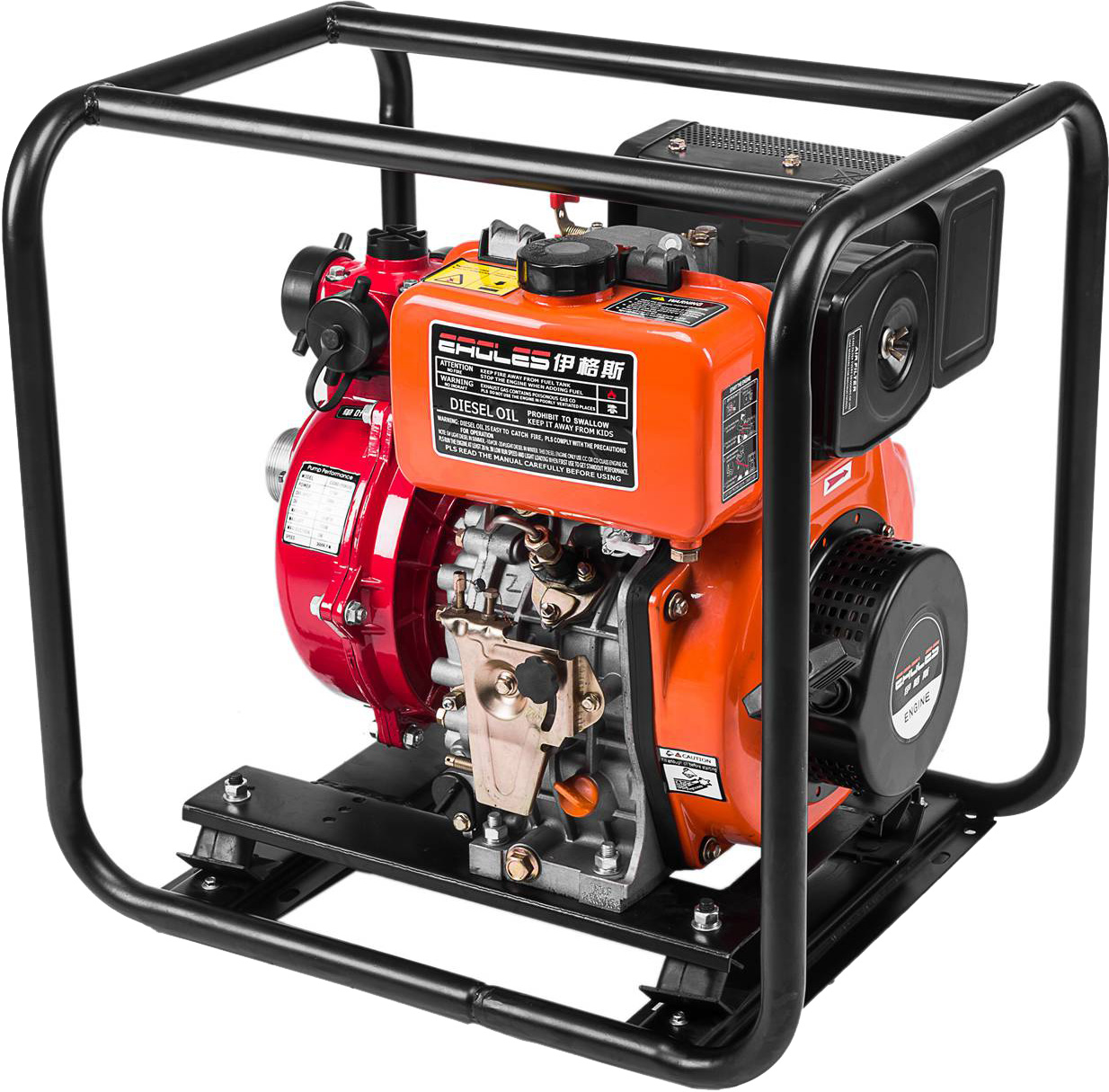

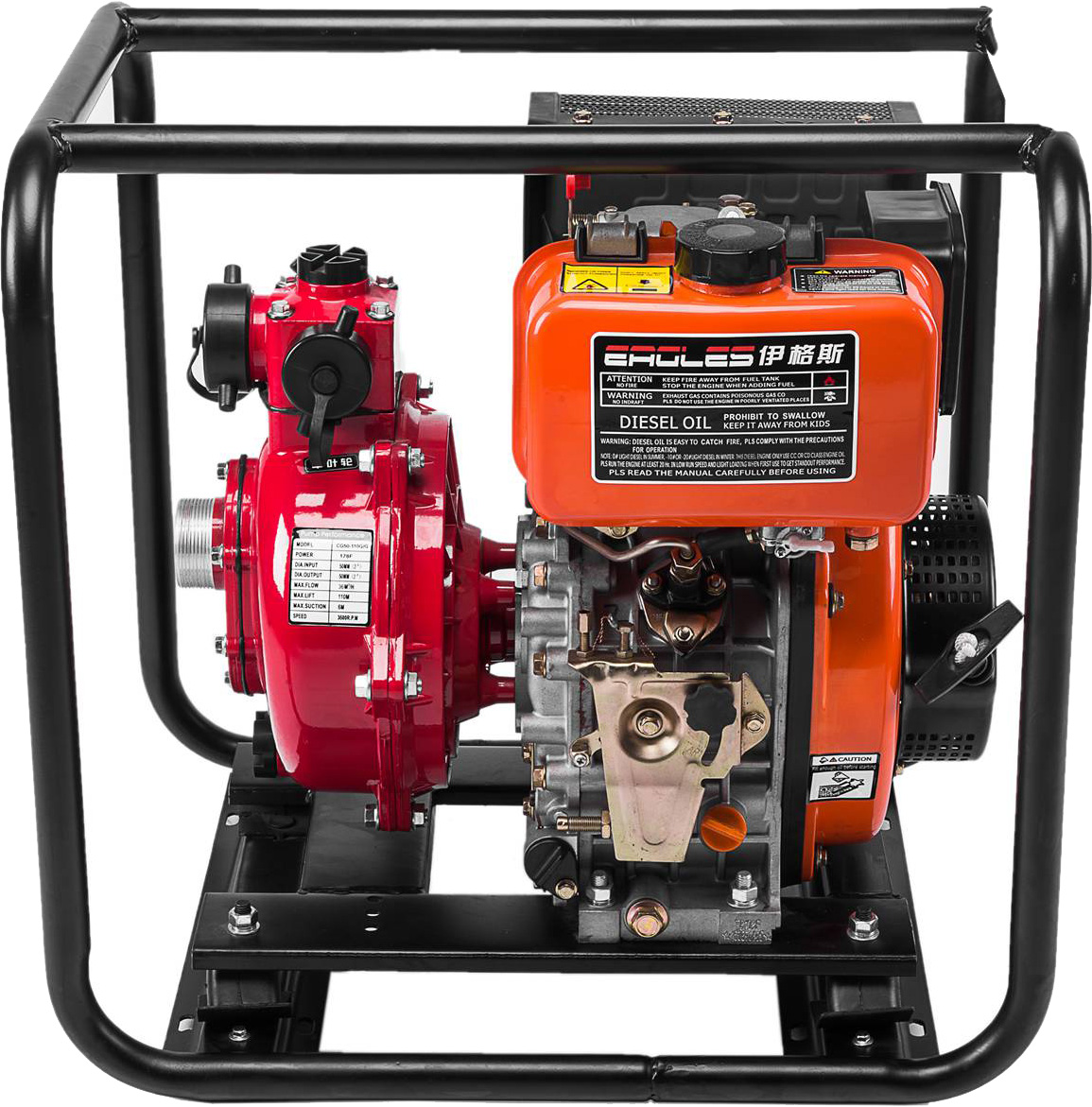

| Name | high pressure self-suction pump |
| Model | YGS CGZ50-110G/G |
| Suction/discharge port diamter( mm) | 50（2″)/50（2″)+2×40（1.5″） |
| Total head lift（m） | 110 |
| Suction head lift（m） | 6 |
| Discharge capacity（m³/h) | 36 |
| Fuel tank capacity（L） | 3.2 |
| Fuel consumption（g/kW·h） | ≤280 |
| Net weight(kg) | 60 |
| Demensions(L×W×H)(mm) | 620×490×610 |
| Engine | 178F |
| Displacement (ml) | 296Q |
| rpm/Rated power(kW) | 4/3600 |
| Oil capacity (L) | 1 |
