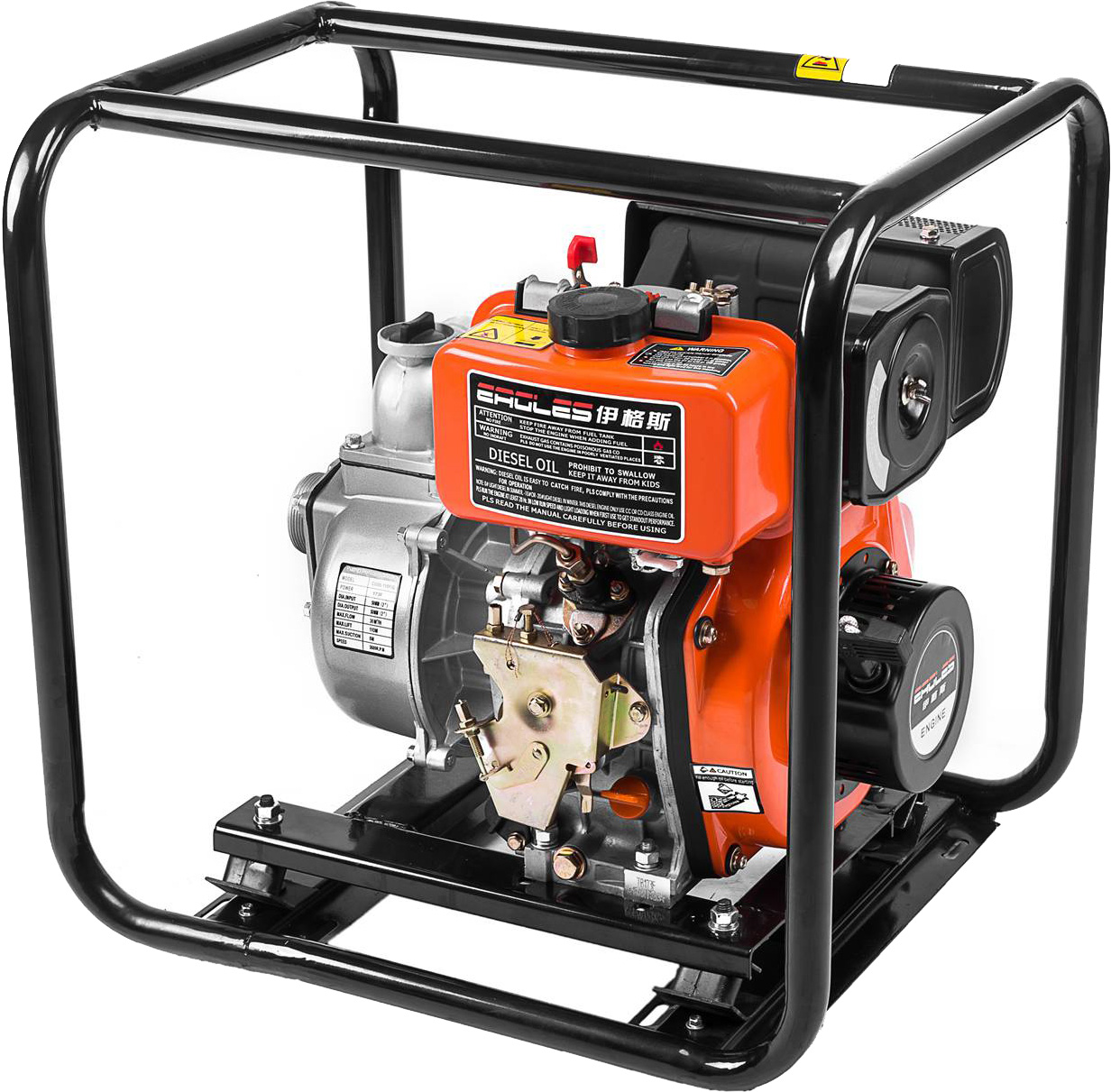

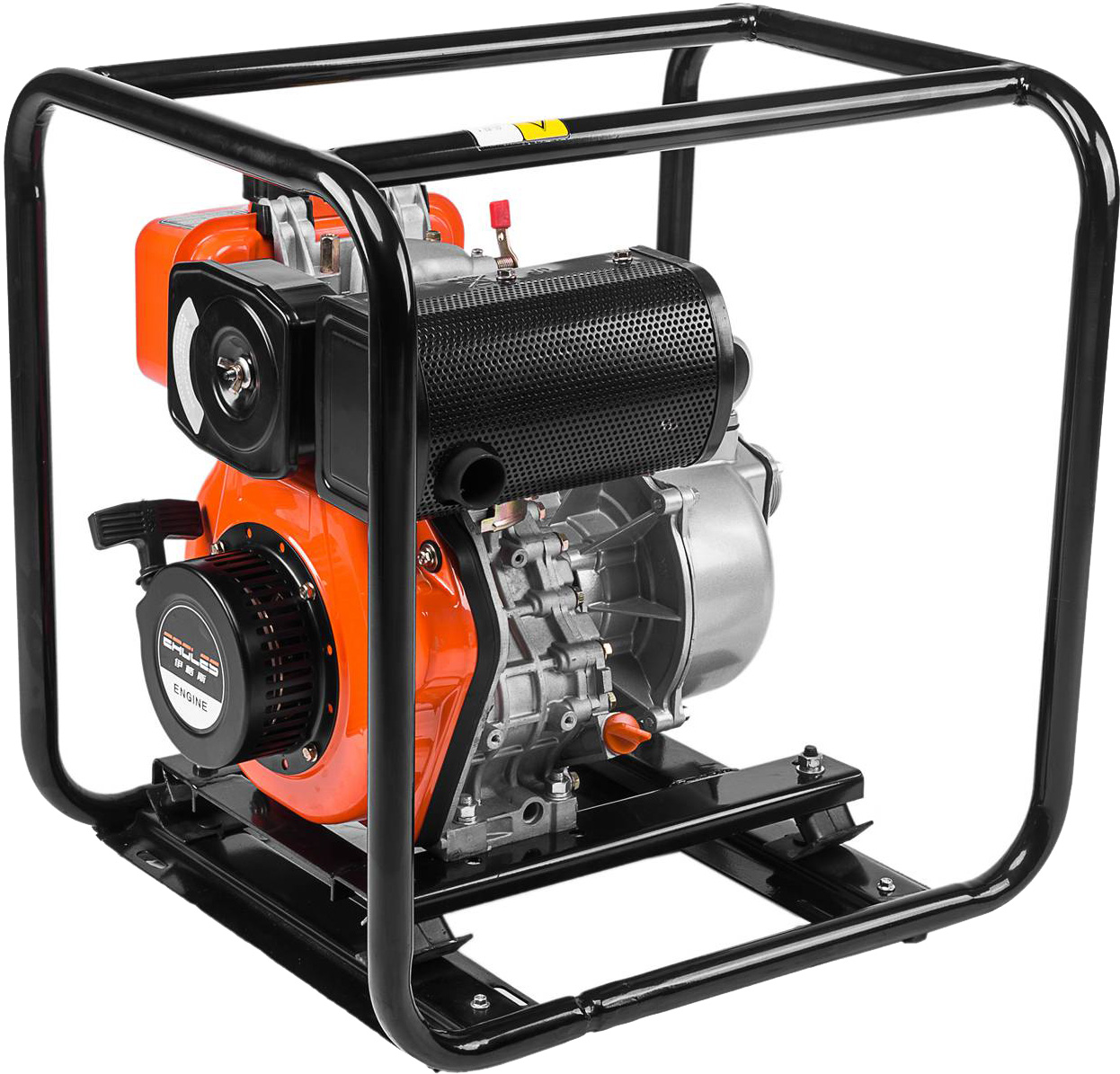

Diesel pump
Your current location: home > PRODUCT CATEGORY > Water Pumps > Diesel pump >
| Name | self-suction |
| Model | YGS CGZ50-32F |
| Suction/discharge port diamter( mm) | 50（2″) |
| Total head lift（m） | 32 |
| Suction head lift（m） | 6 |
| Discharge capacity（m³/h) | 36 |
| Fuel tank capacity（L） | 2.3 |
| Fuel consumption（g/kW·h） | ≤280 |
| Net weight(kg) | 42 |
| Demensions(L×W×H)(mm) | 620×490×610 |
| Engine | 173F |
| Displacement (ml) | 226 |
| rpm/Rated power(kW) | 4.05/3600 |
| Oil capacity (L) | 0.7 |
