Gasoline pumps
Your current location: home > PRODUCT CATEGORY > Water Pumps > Gasoline pumps >

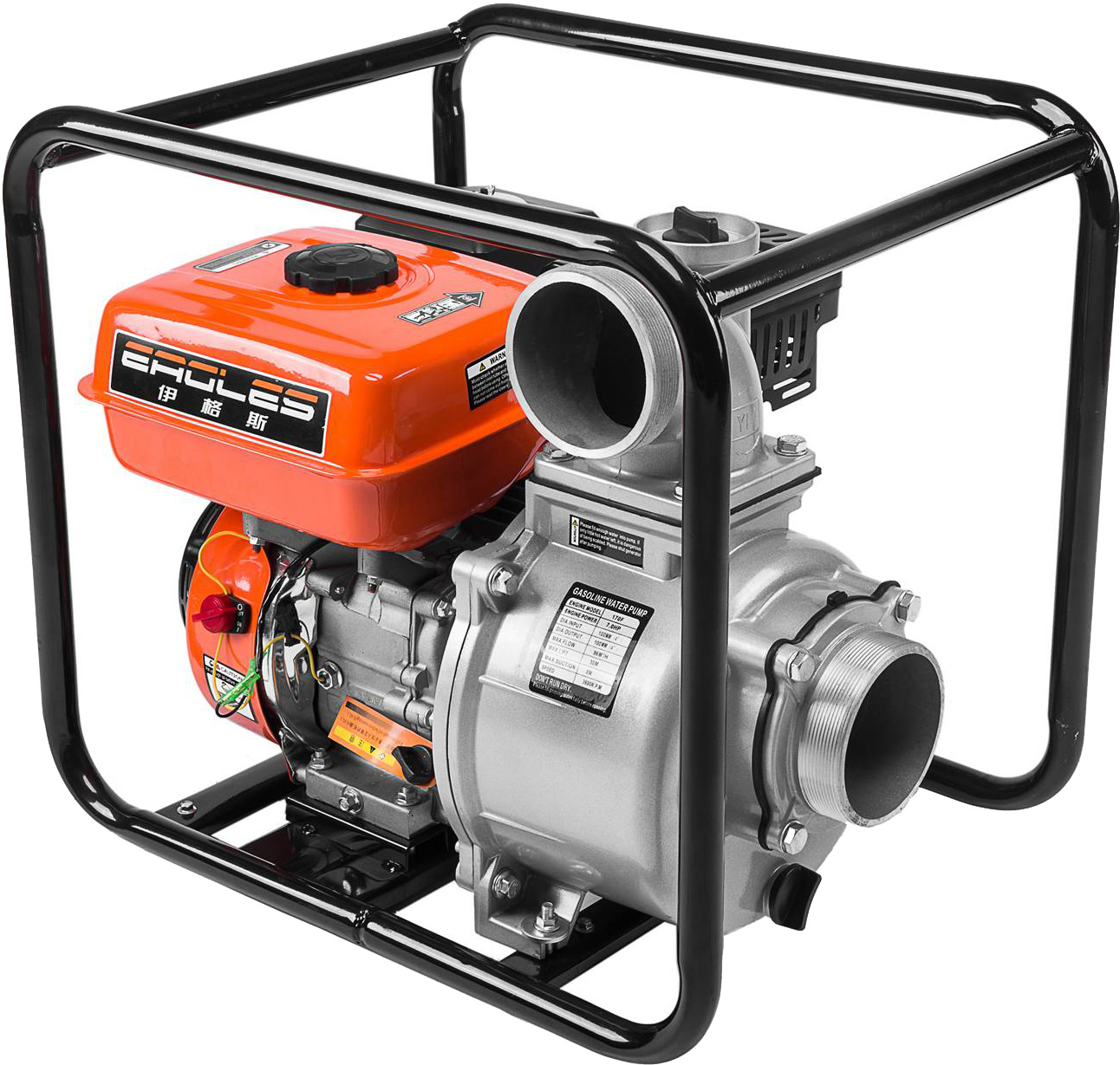

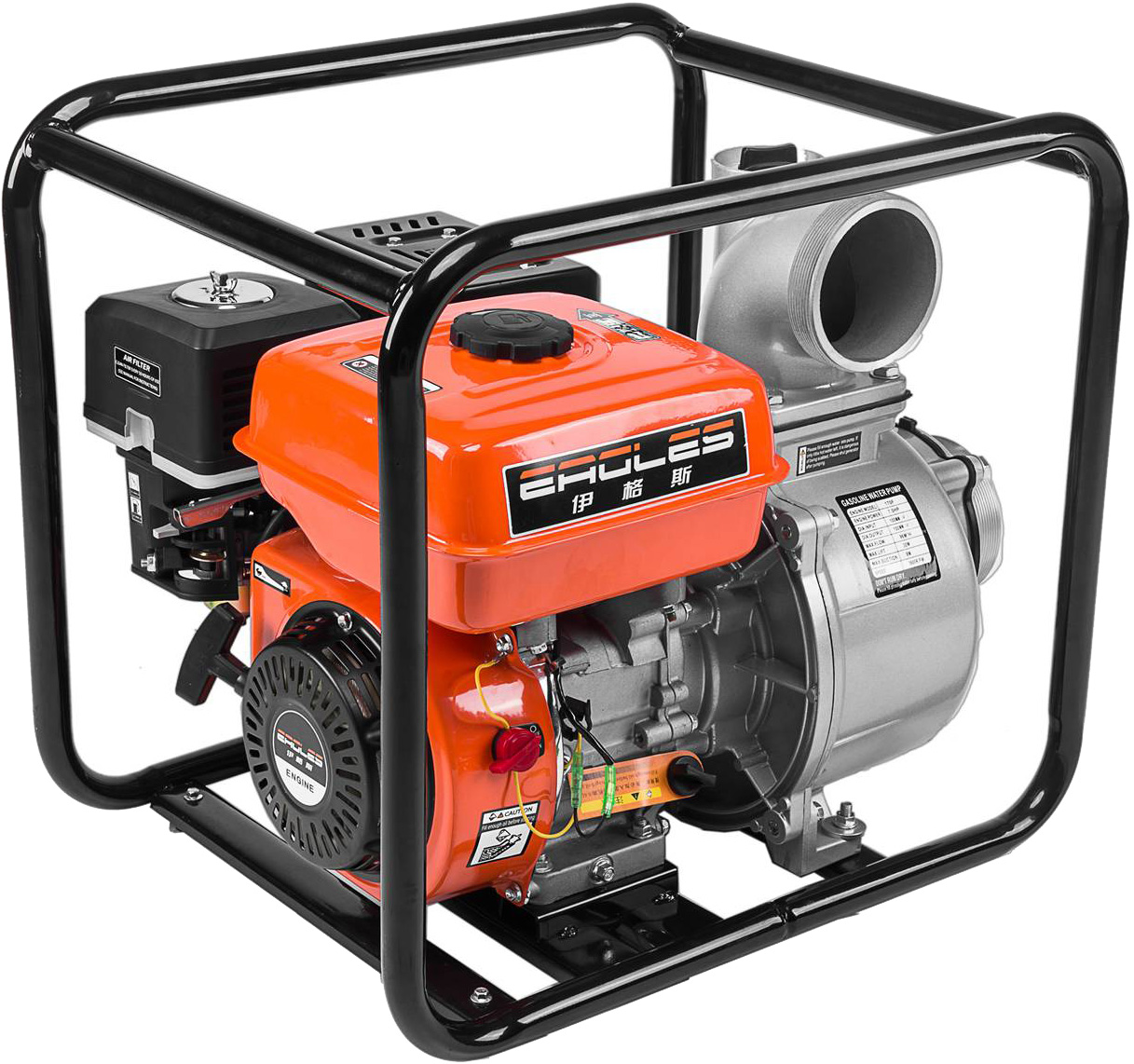

| Name | 4 inch self-suction pump |
| Model | YGS QGZ100-30E |
| Suction/discharge port diamter( mm) | 100（4″)/100（4″) |
| Total head lift(m) | 30 |
| Suction head lift（m） | 7 |
| Discharge capacity（m³/h) | 96 |
| Fuel tank capacity（L） | 5.4 |
| Fuel consumption（g/kW·h） | ≤395 |
| Net weight（kg） | 29 |
| Demensions(L×W×H)（mm） | 630×470×550 |
| Engine | 170F/P |
| Displacement（ml） | 212 |
| rpm/Rated power（kW） | 4.0/3600 |
| Oil capacity（L） | 0.6 |
