Gasoline spray engine
Your current location: home > PRODUCT CATEGORY > Sprayer > Gasoline spray engine >

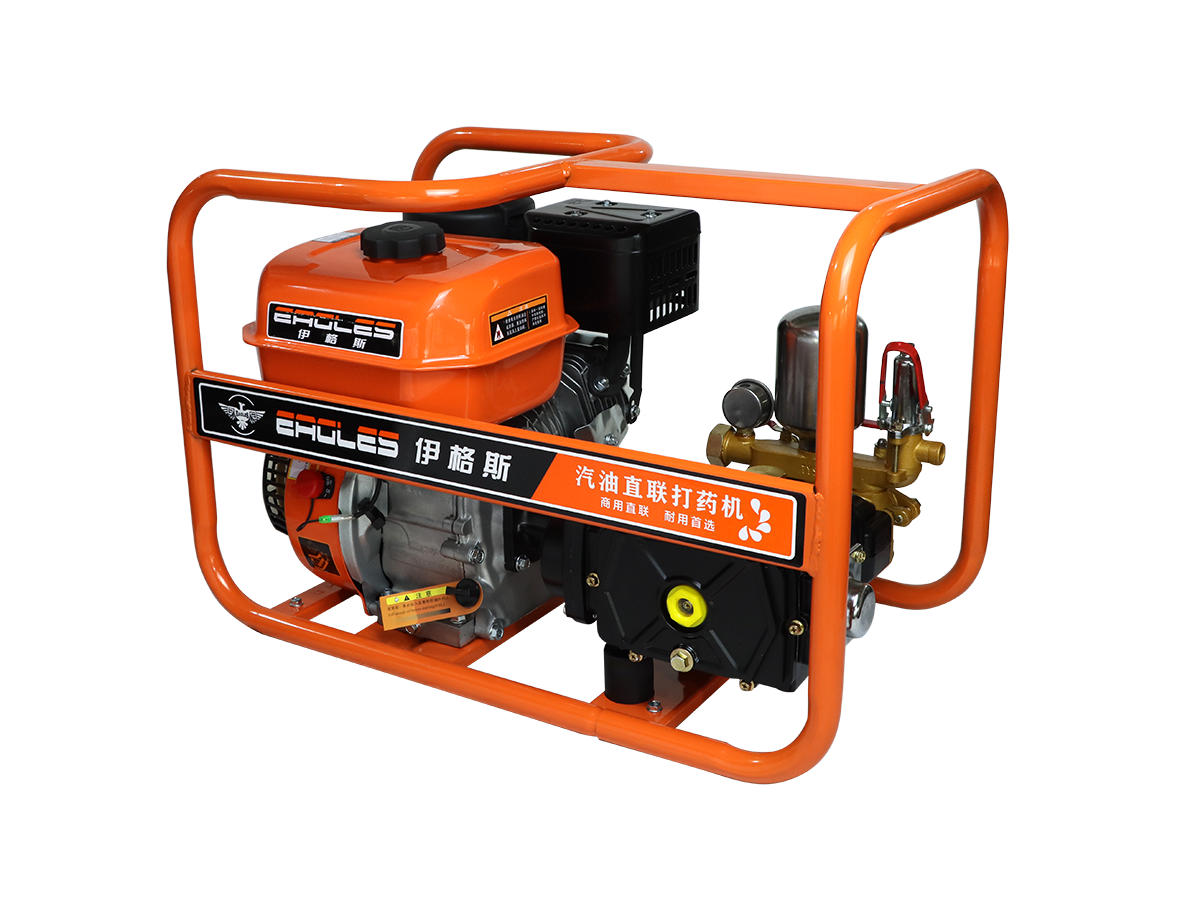

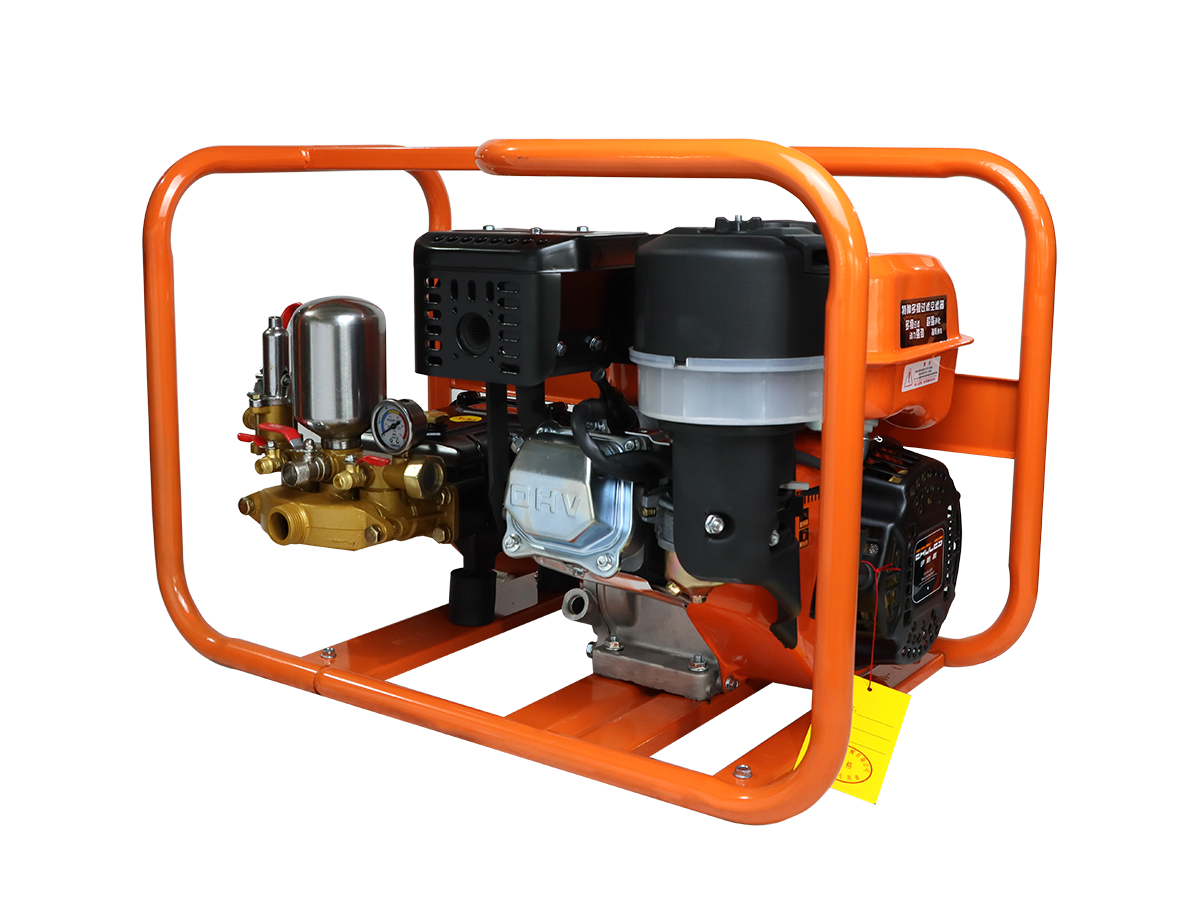

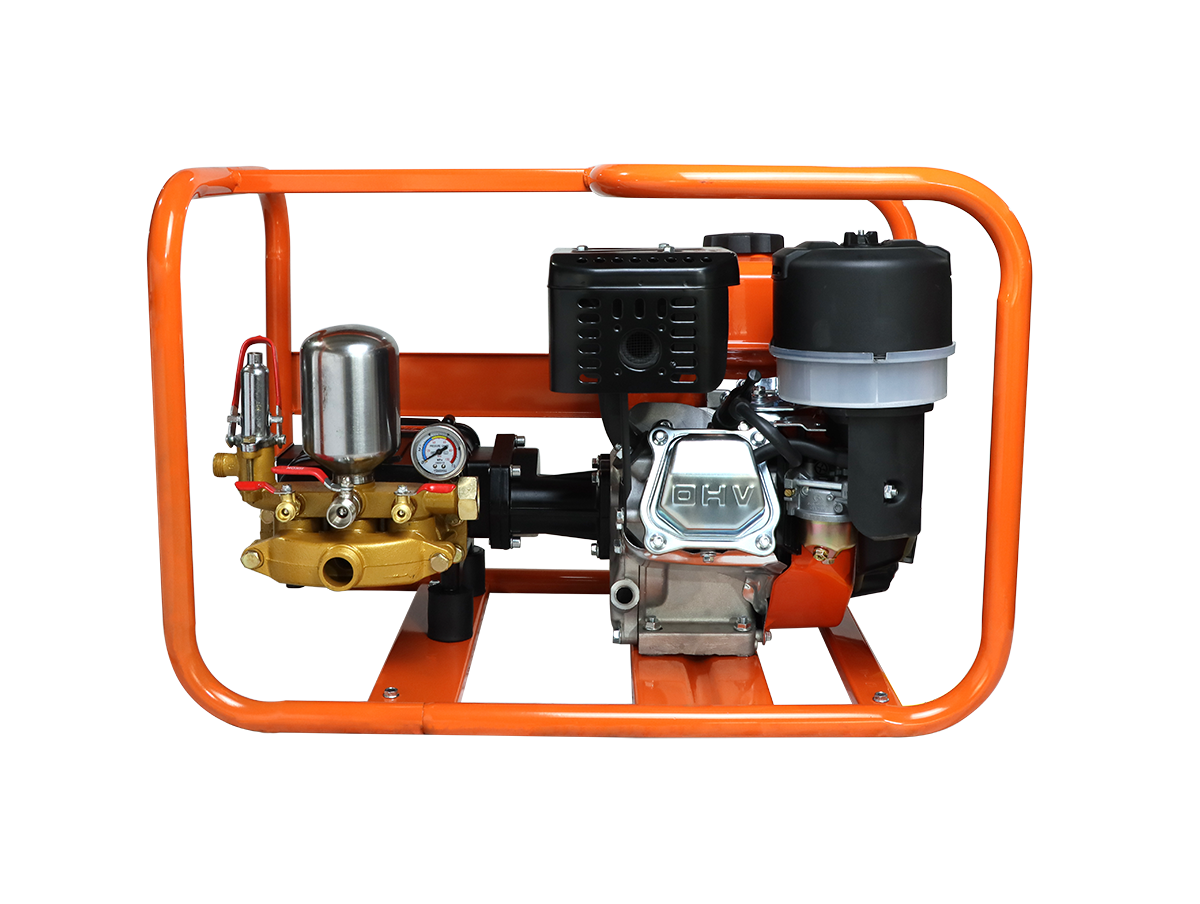

30 direct connected spray engine frame structure design, 170F gasoline engine, spray engine directly connected to the crankshaft, strong power, fast start, smooth operation. Lightweight design, with a total weight of less than 30KG, making it easy to move. Chromium plated pump body, free of grease and maintenance, easy to operate, long range, and strong pressure. Three water outlets for several people to use together, saving time and effort.
PARAMETERS OF 170F GASOLINE DIRECT CONNECTION 30 SPRAY ENGINE |
ENGINE | Power type | Single cylinder_ Air-cooled_ Four stroke | SPRAYER | Model | 3WK4.0-Z30A |
Power model | 170F | Pump type | Direct connected crankshaft_ Chrome plating_ No butter_30 | ||
Bore/Stroke(mm) | ϕ70/55 | Pressure(kgf/c㎡) | 20-35 | ||
Power（kw/hp） | 4.0/7 | Plunger diameter(mm) | 30 | ||
Displacement(cm³) | 212 | Water regains(L/min) | 30 | ||
Speed(rpm) | 3600±100 | Dimensions(mm) | 695X400X460 | ||
Fuel volume（L） | 5L | Gross/Net weight(kg) | 29.5/27.5 |
Butter free chrome plated pump body
Pump inlet and outlet
