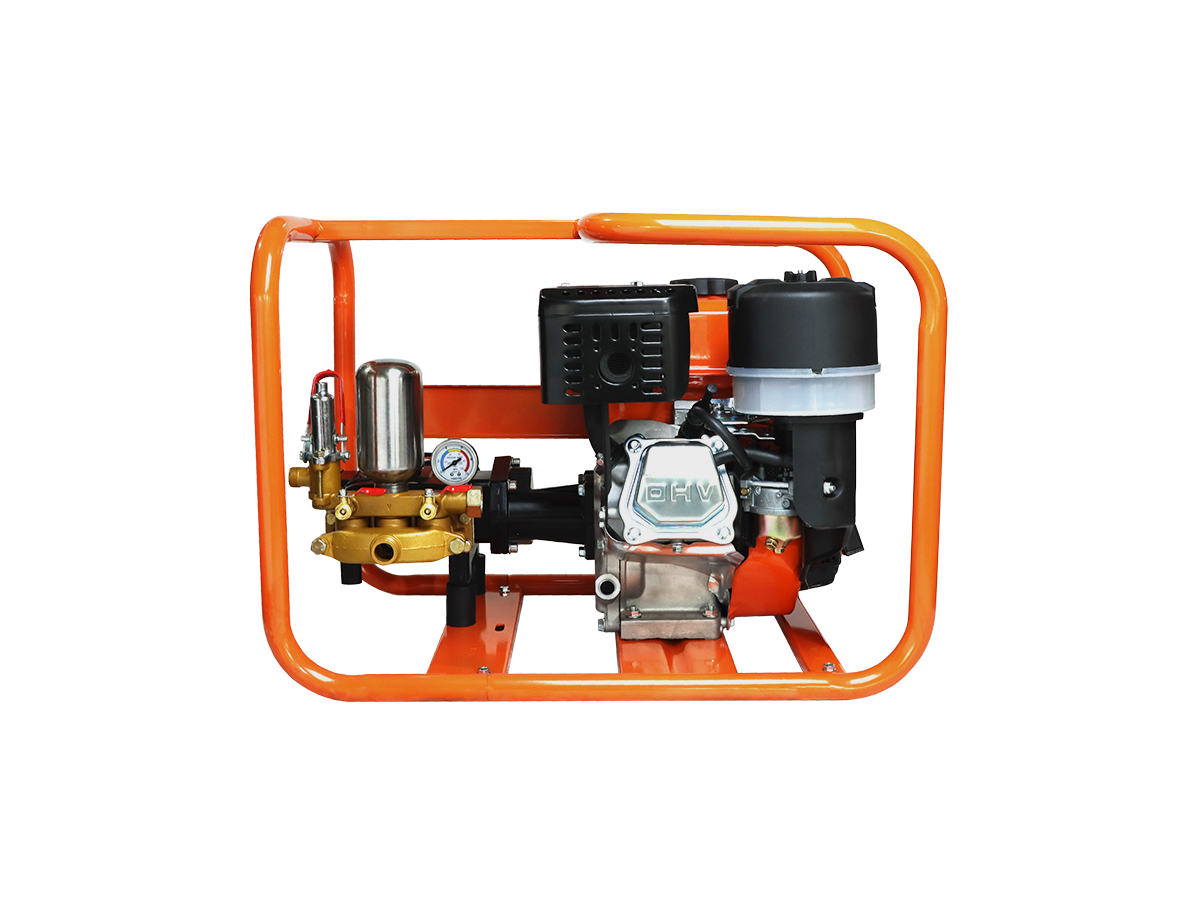

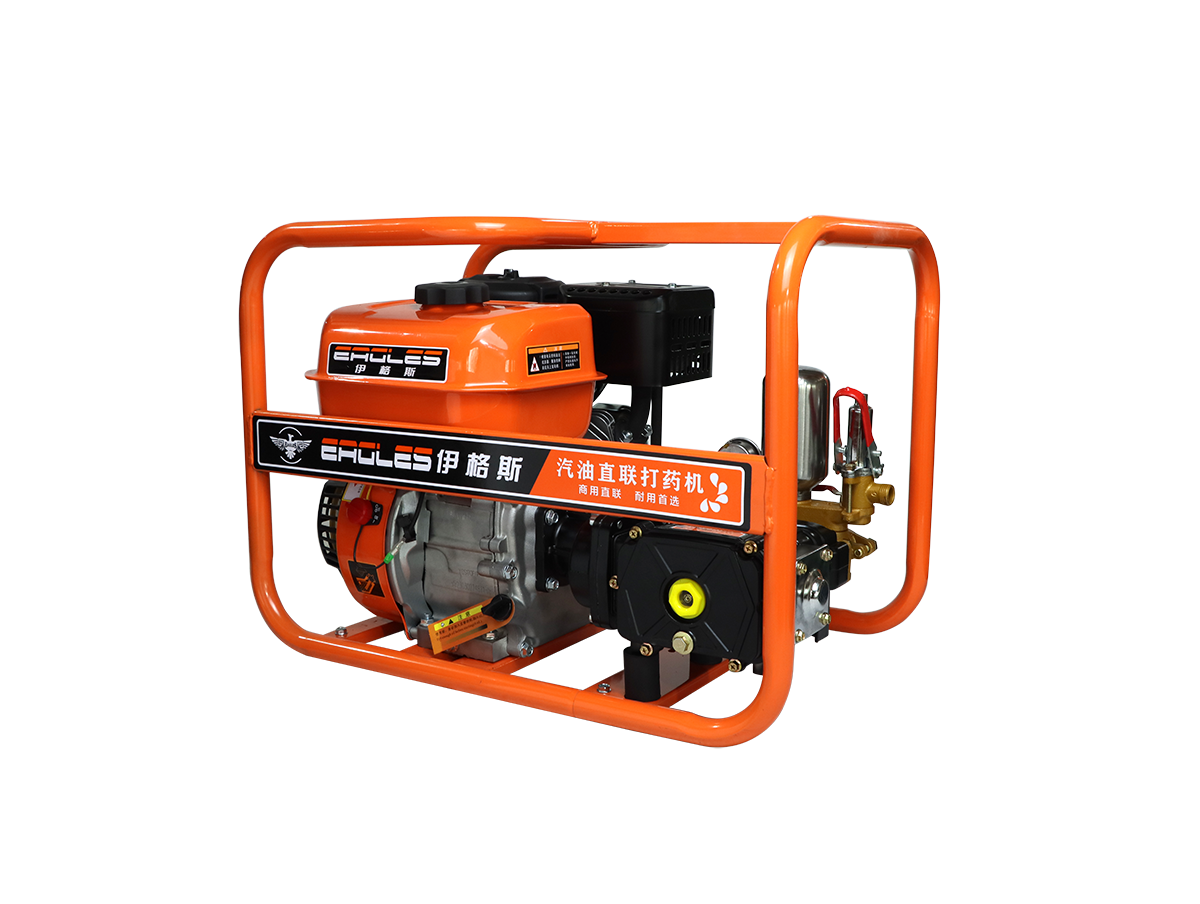

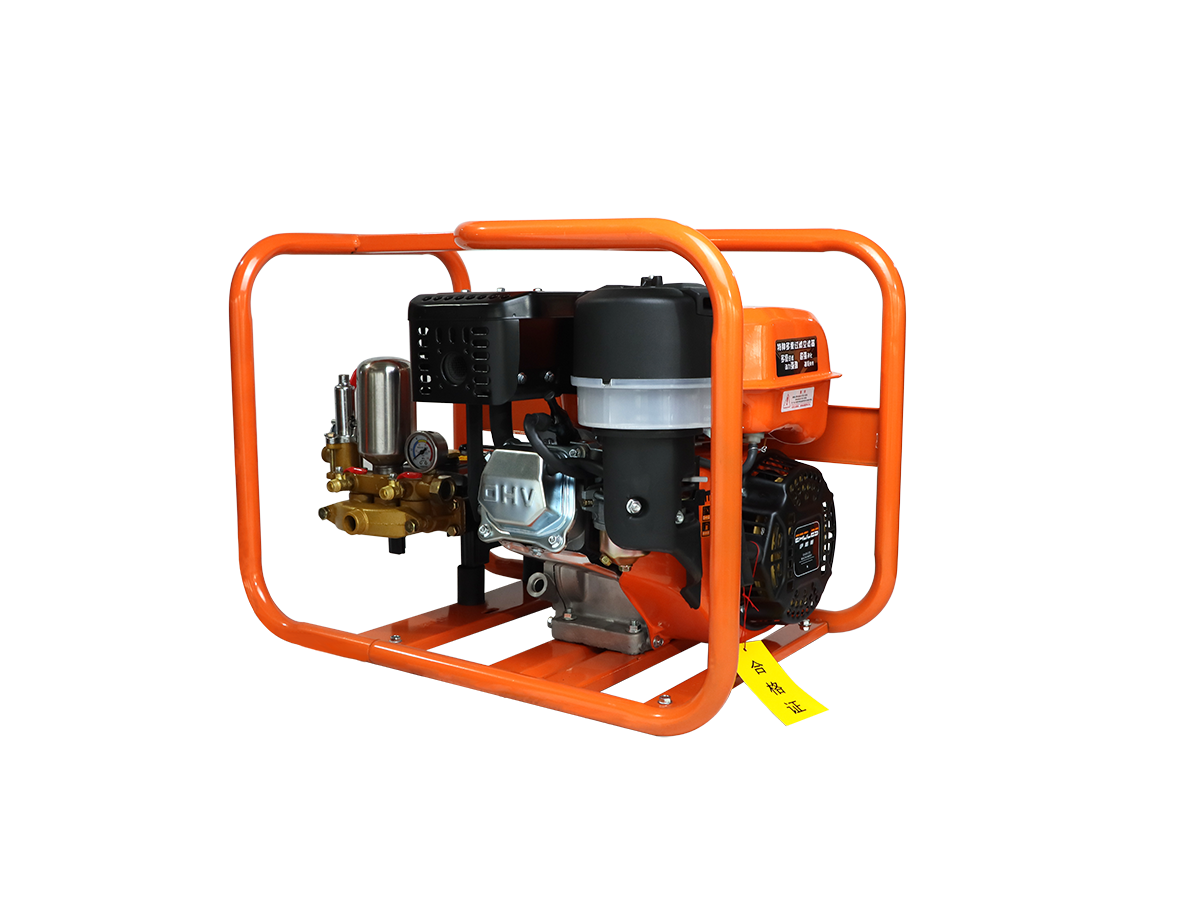

26 Direct connected spray engine frame structure design,170F gasoline engine, spray engine directly connected to the crankshaft, strong power, fast start, smooth operation. Lightweight design, with a total weight of approximately 25kg, making it easy to move. Chromium plated pump body, free of grease and maintenance, easy to operate, long range, strong pressure, time-saving and labor-saving to use.
PARAMETERS OF 170F GASOLINE DIRECT CONNECTION 26 SPRAY ENGINE |
ENGINE | Power type | Single cylinder_ Air-cooled_ Four stroke | SPRAYER | Model | 3WK4.0-Z26A |
Power model | 170F | Pump type | Direct connected crankshaft_ Chrome plating_ No butter_26 | ||
Bore/Stroke(mm) | ϕ70/55 | Pressure(kgf/c㎡) | 20-35 | ||
Power（kw/hp） | 4.0/7 | Plunger diameter(mm) | 22 | ||
Displacement(cm³) | 212 | Water regains(L/min) | 26 | ||
Speed(rpm) | 3600±100 | Dimensions(mm) | 630X400X460 | ||
Fuel volume（L） | 5L | Gross/Net weight(kg) | 27.5/25.5 |

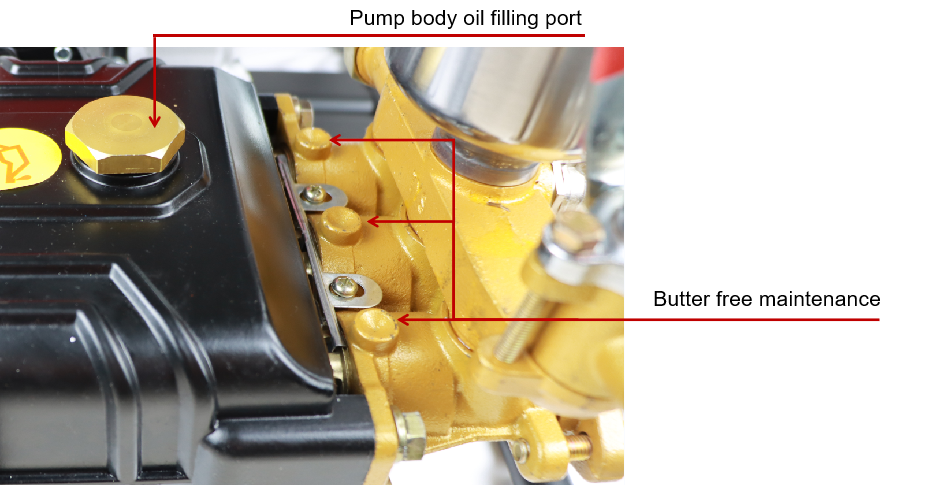

Butter free chrome plated pump body

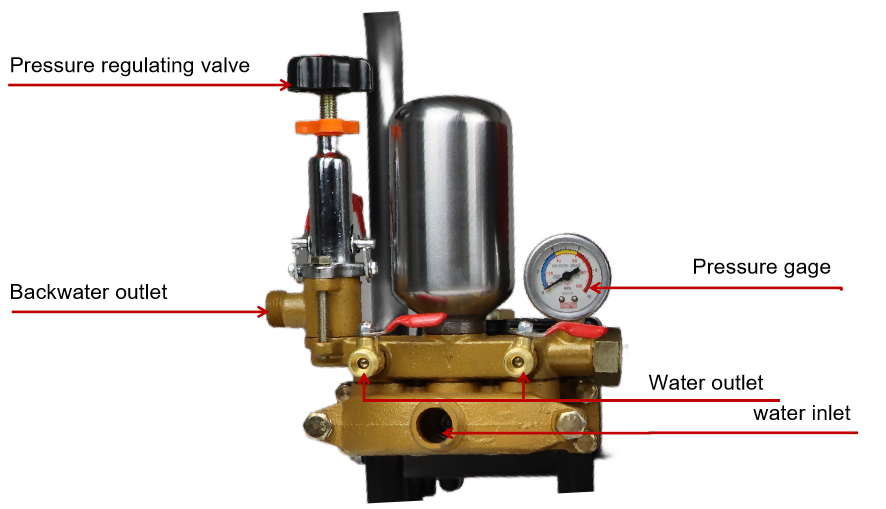

Pump inlet and outlet
