Gasoline spray engine
Your current location: home > PRODUCT CATEGORY > Sprayer > Gasoline spray engine >

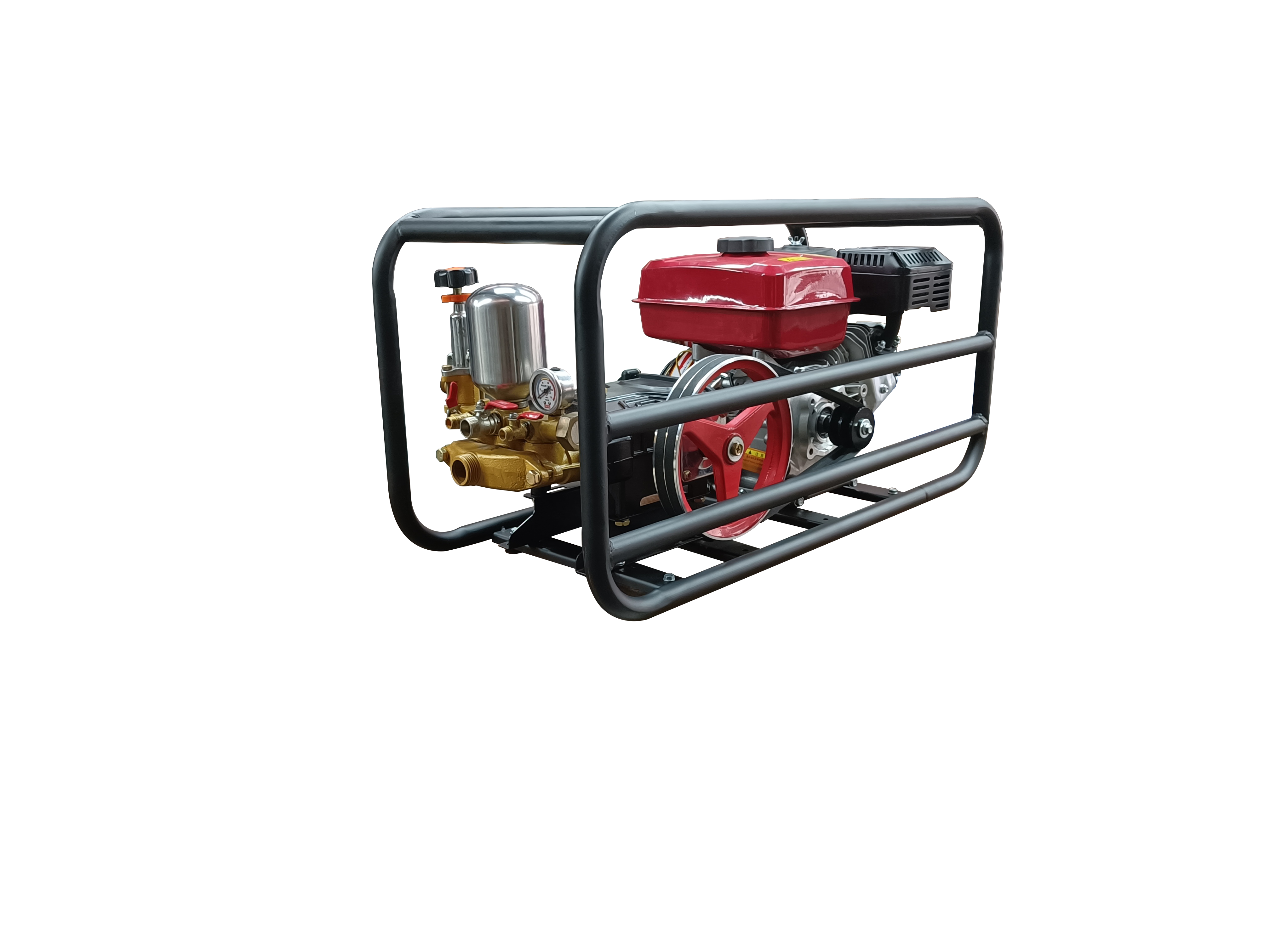

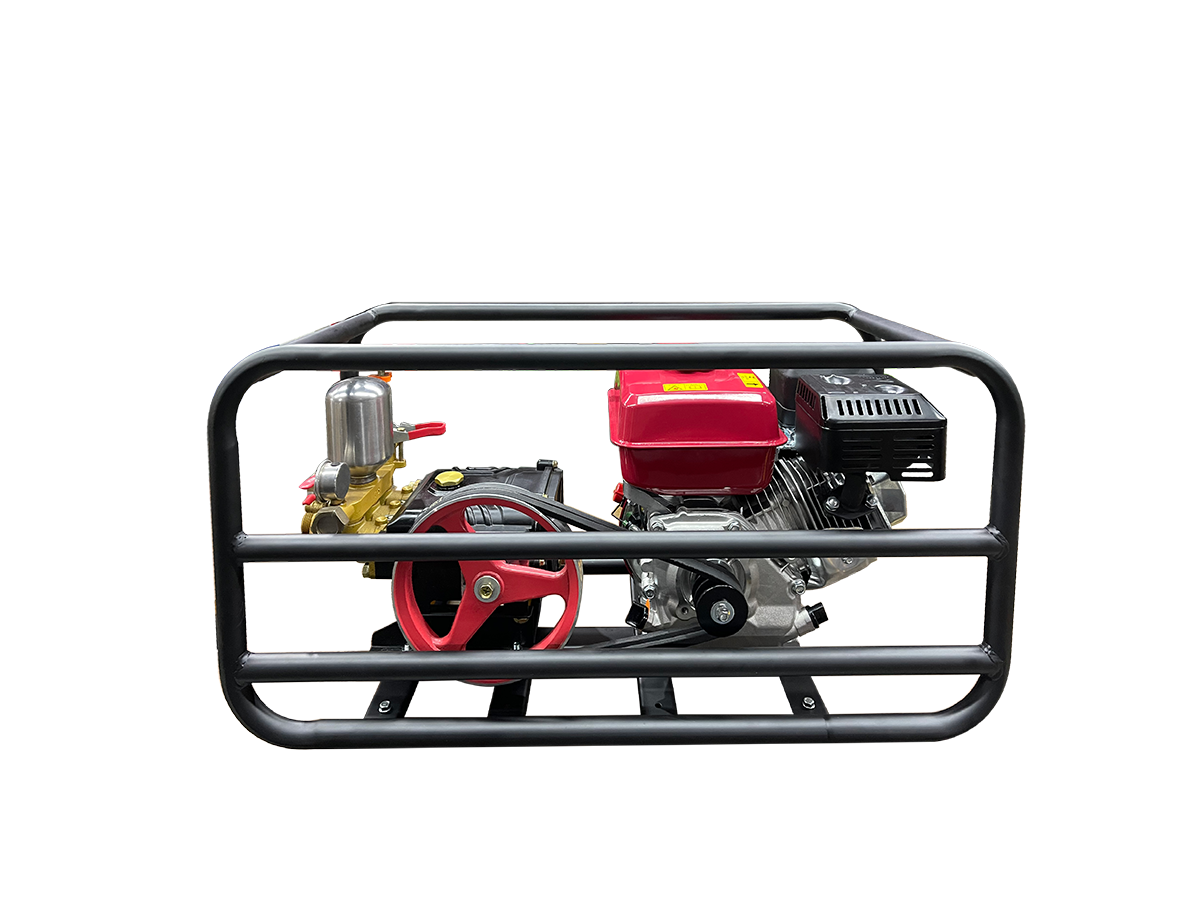

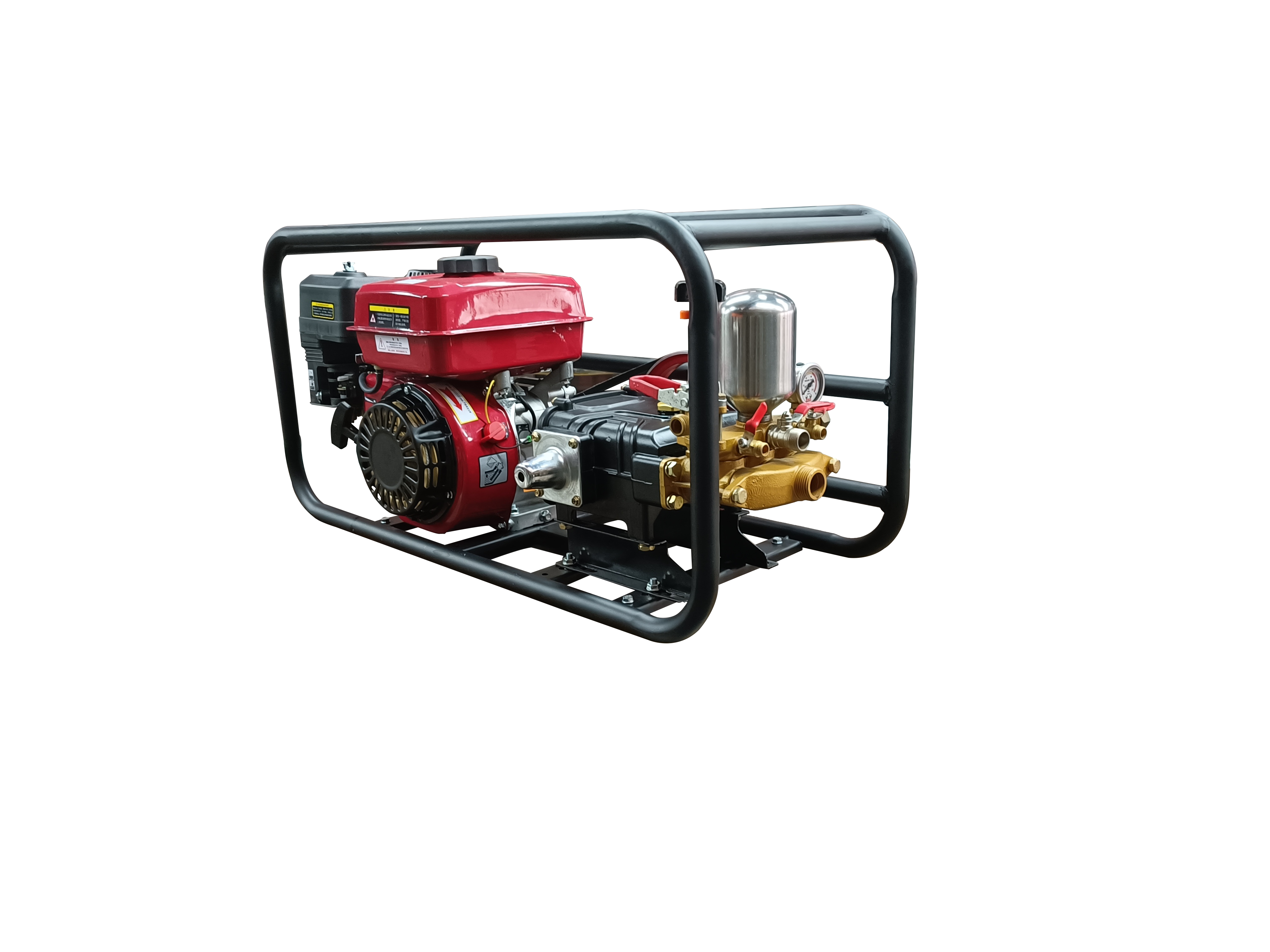

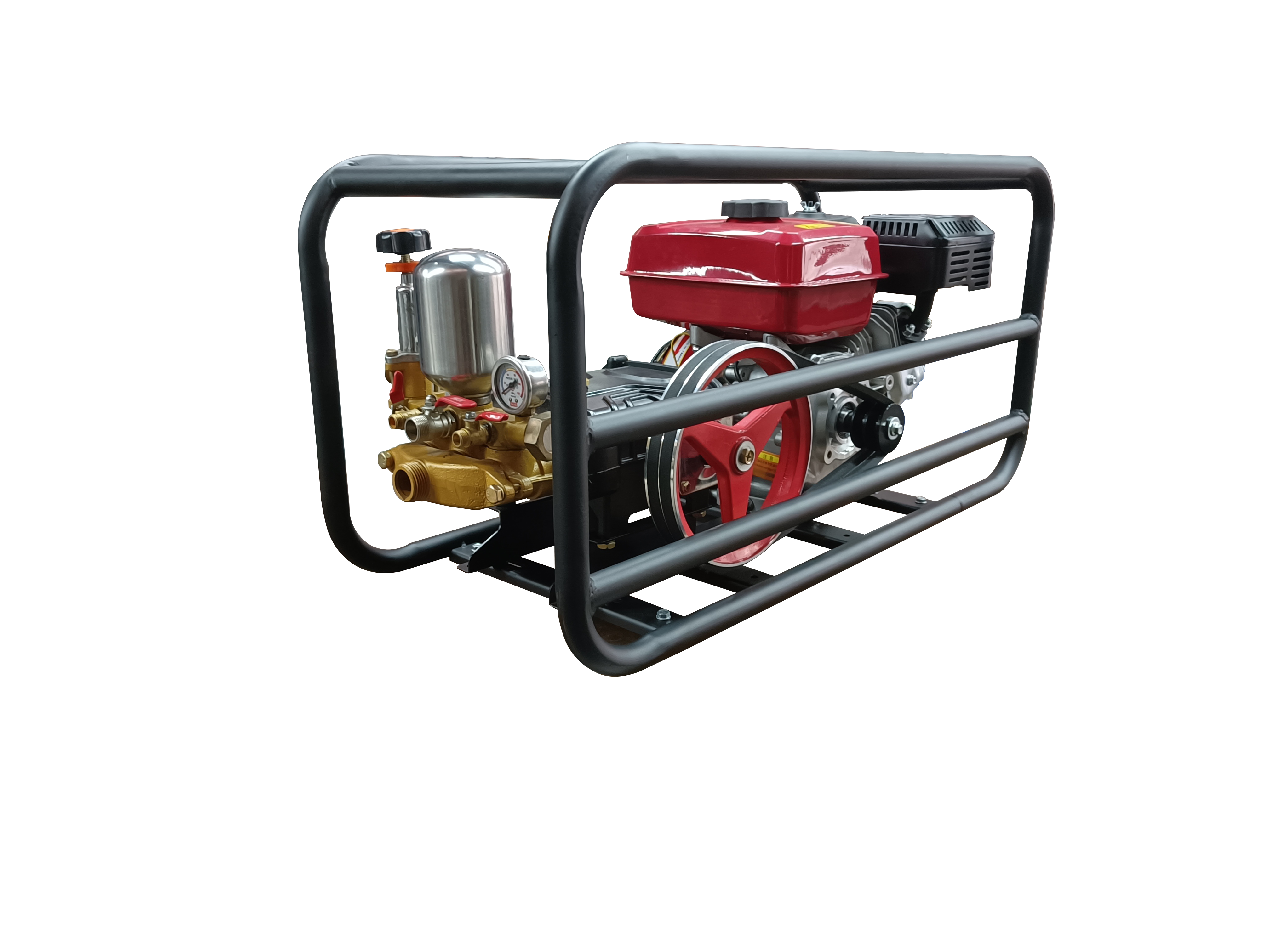

170F gasoline 30 belt spray has frame structure design, small vibration and strong stability. The 170F gasoline engine has strong power, fast start, and smooth operation.
Spray belt crankshaft, high-quality belt, high wear resistance, can be used for a long time. Chromium plated pump body, free of grease and maintenance, easy to operate. Three water outlets can be used by several people together. Long range, strong pressure, time-saving and labor-saving.
PARAMETERS OF 170F GASOLINE 26 BELT SPRAY ENGINE |
ENGINE | Power type | Single cylinder_ Air-cooled_ Four stroke | SPRAYER | Model | 3WK4.0-P30A |
Power model | 170F | Pump type | Belt crankshaft_ Chrome plating_ No butter_30 | ||
Bore/Stroke(mm) | ϕ70/55 | Pressure(kgf/c㎡) | 20-35 | ||
Power（kw/hp） | 4.0/7 | Plunger diameter(mm) | 30 | ||
Displacement(cm³) | 212 | Water regains(L/min) | 30 | ||
Speed(rpm) | 3600±100 | Dimensions(mm) | 810X355X430 | ||
Fuel volume（L） | 3.6L | Gross/Net weight(kg) | 29.5/27.5 |

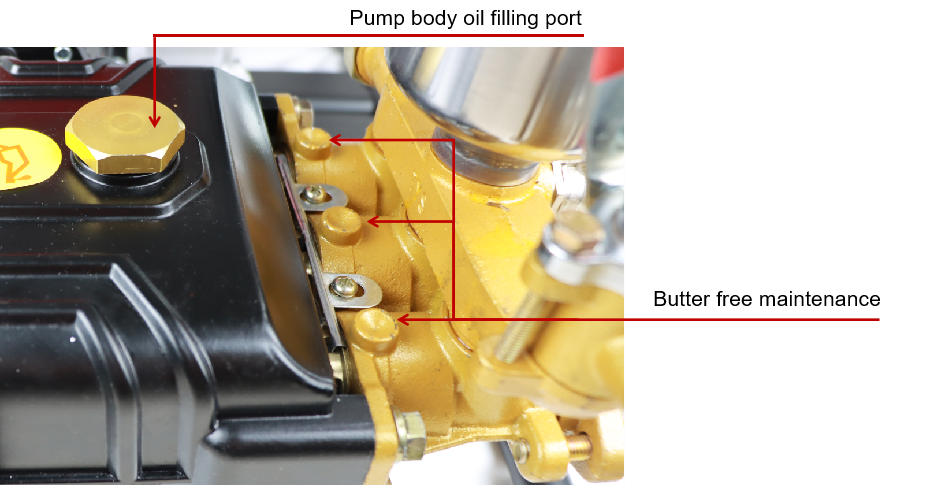

Butter free chrome plated pump body

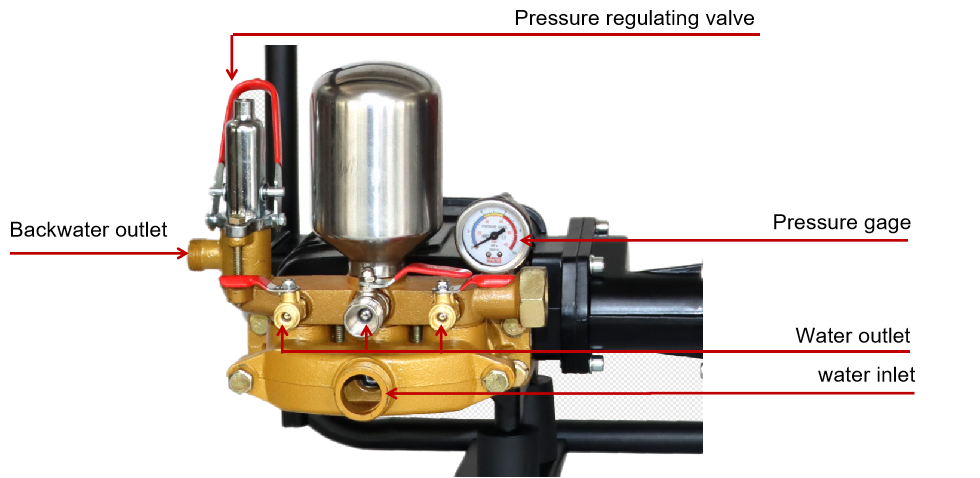

Pump inlet and outlet
