Gasoline spray engine
Your current location: home > PRODUCT CATEGORY > Sprayer > Gasoline spray engine >

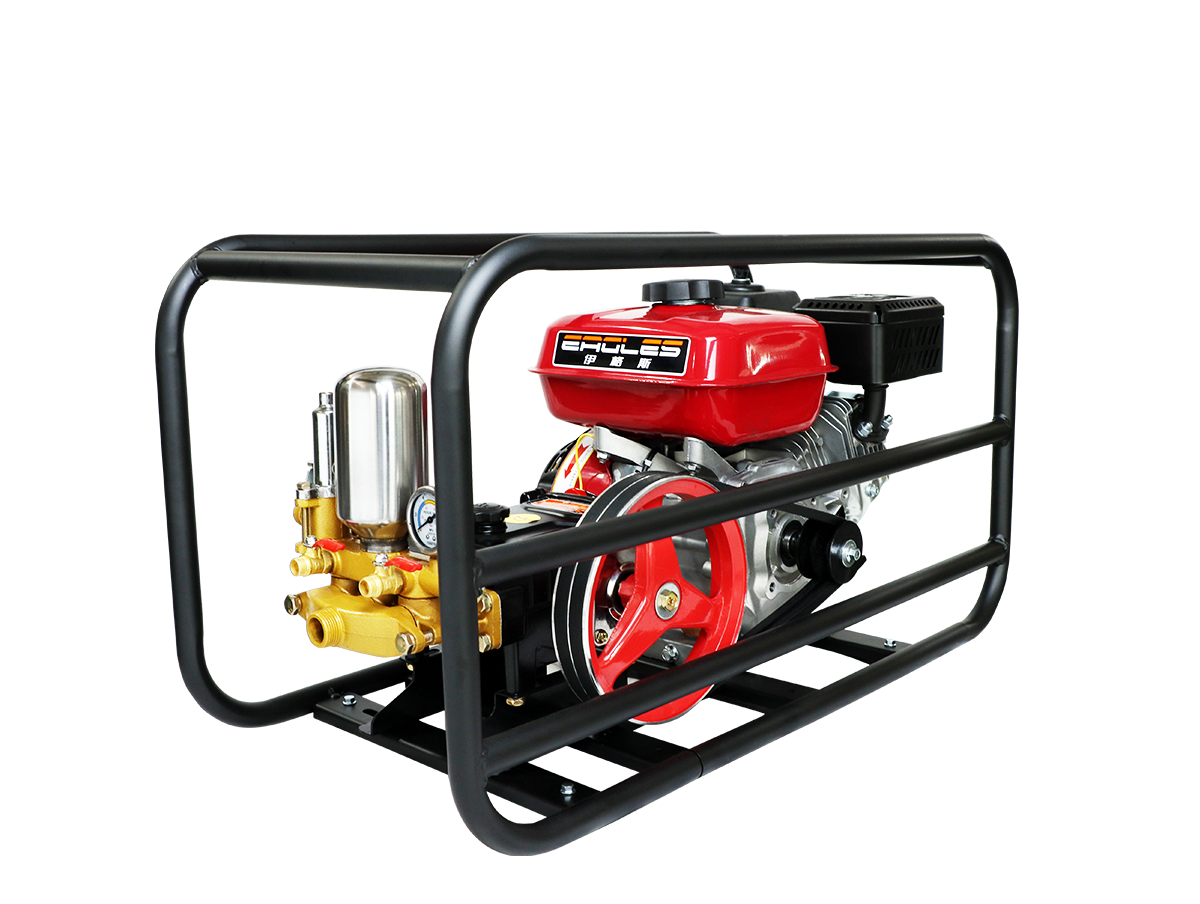

26 belt spray frame structure design, 170F gasoline engine, strong power, fast start, stable operation. Lightweight design, with a total weight of less than 23kg, making it easy to move. Spray belt crankshaft, high-quality belt, high wear resistance, long service life. Chromium plated pump body, free of grease and maintenance, easy to operate, long range, strong pressure, time-saving and labor-saving to use.
| PARAMETERS OF 170F GASOLINE 26 BELT SPRAY ENGINE |
ENGINE | Power type | Single cylinder_ Air-cooled_ Four stroke | SPRAYER | Model | 3WK4.0-P26A |
Power model | 170F | Pump type | Belt crankshaft_ Chrome plating_ No butter_26 | ||
Bore/Stroke(mm) | ϕ70/55 | Pressure(kgf/c㎡) | 20-35 | ||
Power（kw/hp） | 4.0/7 | Plunger diameter(mm) | 22 | ||
Displacement(cm³) | 212 | Water regains(L/min) | 26 | ||
Speed(rpm) | 3600±100 | Dimensions(mm) | 755X355X425 | ||
Fuel volume（L） | 3.6L | Gross/Net weight(kg) | 26.5/23.5 |
Butter free chrome plated pump body
Pump inlet and outlet
